Scene Pictures

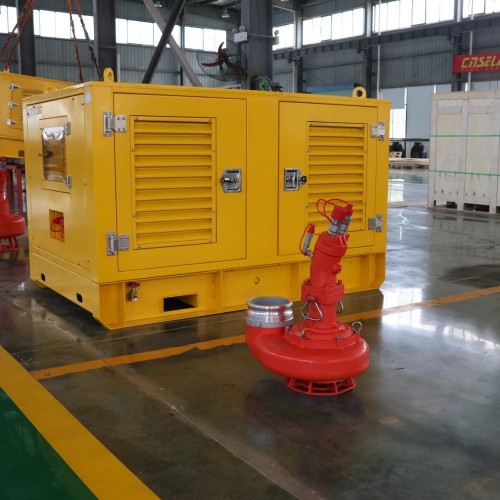

CHSP hydraulic slurry pump is made of 304 stainless steel and is designed for conveying media containing solid particles, such as ore slurry, mud, sand and lime slurry, etc. It has a wide range of uses.
Features：
1. The overall design of the pump is light, maneuverable and efficient.
2. The sewage pump impeller adopts a vortex design. The rotation of the impeller makes the liquid or slurry in the pump body move in a circular motion, forming a cone under the action of centrifugal force, reducing the contact between the liquid or slurry and the impeller and reducing friction.
Specifications
| Model | Outlet diameter(inch) | Flow rate(m3/h) | Head(m) | Hydraulic flow rate(L/min) | Pressure(bar) | Solid passing(mm) |
| HSP65 | 2.5 | 65-120 | 10-60 | 30-80 | 280 | 58 |
| HSP80 | 3 | 65-120 | 10-48 | 20-80 | 145 | 58 |
| HSP100 | 4 | 120-250 | 10-50 | 30-80 | 155 | 65 |
| HSP150 | 6 | 280-330 | 15-33.5 | 60-100 | 155-172 | 85 |
| CHSP150 | 6 | 320 | 25 | 60-80 | 172 | 85 |
| HSP200 | 8 | 450-500 | 0-12 | 80-120 | 140-190 | 100 |
| CHSP200 | 8 | 600 | 25 | 120-140 | 230-270 | 85 |
（The corresponding hydraulic flow can be matched according to the actual working conditions.）
CNSELAM HSP and CHSP series hydraulic submersible pump is a high pressure hydraulic trash pump, suitable for emergency rescue and drainage, urban flood control, etc.
阅读更多
CNSELAM CHSP series hydraulic slurry pump has the characteristics of strong mobility and high efficiency.
