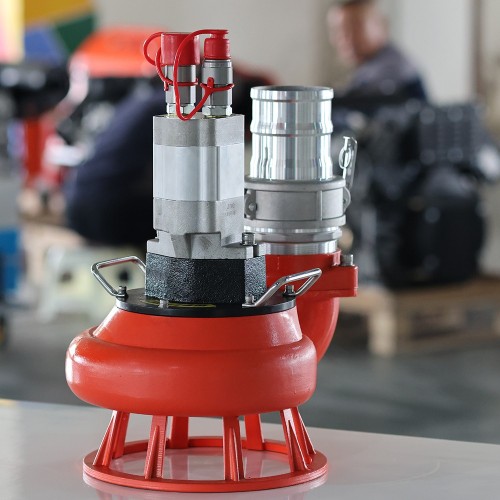

CNSELAM HSP and CHSP series hydraulic submersible pump is a high pressure hydraulic trash pump, suitable for emergency rescue and drainage, urban flood control, etc.
模型 :
HSP100出口直径（英寸） :
4最大流量(m³/h) :
120-250最大扬程(m) :
10-50液压流量（L/min） :
30-80压力(bar) :
155固体通过量(mm) :
65Scene Pictures
CNSELAM HSP and CHSP series Hydraulic trash pumps are a type of equipment that uses centrifugal force generated by the rotation of the impeller to transport solid-liquid mixtures. Its core is to achieve liquid transportation through centrifugal force.
Features：
1.The slurry trash pump has the characteristics of small size, light weight and strong mobility.
2. It is directly driven by a hydraulic power station, eliminating the risk of electrical leakage and providing high efficiency.
Specifications
| Model | Outlet diameter(inch) | Flow rate(m3/h) | Head(m) | Hydraulic flow rate(L/min) | Pressure(bar) | Solid passing(mm) |
| HSP65 | 2.5 | 65-120 | 10-60 | 30-80 | 280 | 58 |
| HSP80 | 3 | 65-120 | 10-48 | 20-80 | 145 | 58 |
| HSP100 | 4 | 120-250 | 10-50 | 30-80 | 155 | 65 |
| HSP150 | 6 | 280-330 | 15-33.5 | 60-100 | 155-172 | 85 |
| CHSP150 | 6 | 320 | 25 | 60-80 | 172 | 85 |
| HSP200 | 8 | 450-500 | 0-12 | 80-120 | 140-190 | 100 |
| CHSP200 | 8 | 600 | 25 | 120-140 | 230-270 | 85 |
CNSELAM HSP and CHSP series hydraulic submersible pump is a high pressure hydraulic trash pump, suitable for emergency rescue and drainage, urban flood control, etc.
阅读更多

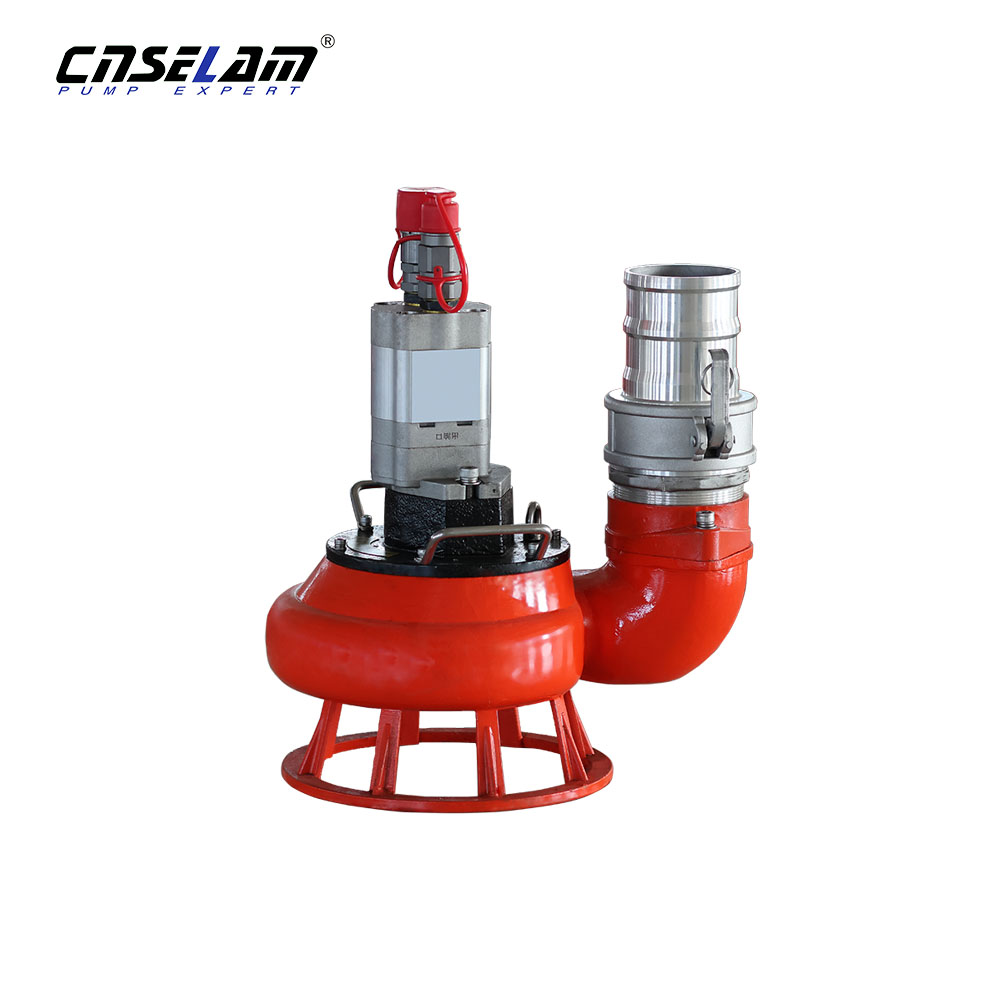

CNSELAM CHSP series hydraulic slurry pump has the characteristics of strong mobility and high efficiency.
